How to Adjust Aluminum Bifold Doors: A Step-by-Step Guide
Updated: 18 Aug 2026
Aluminum bifold doors are designed to provide smooth operation, wide openings, and a seamless connection between indoor and outdoor spaces. However, after years of use, some homeowners, installers, or project contractors may notice issues such as difficult operation, uneven gaps between panels, door leaves rubbing against the frame, or locking points not aligning properly.
In most cases, these issues do not necessitate replacing the entire door system. For a well-designed aluminum alloy folding door system, smooth operation can usually be restored and the system’s service life extended through proper adjustments to the rollers, hinges, and alignment components.
As an experienced aluminum door manufacturer, Shenghai Aluminum understands the importance of proper installation, hardware adjustment, and regular maintenance. This guide explains step-by-step how to adjust aluminum bifold doors, covering common adjustment issues, practical solutions, and situations where professional assistance may be needed.
* Door panels
* Hinges
* Top and bottom rollers
* Pivot points
* Locking hardware
* Aluminum frames and tracks
Because large glass panels can be heavy, even a small movement in the hardware or building structure may affect door performance over time.
Common reasons why aluminum bifold doors need adjustment include:
* Natural settling of the building structure
* Loose or worn hardware
* Changes caused by temperature expansion and contraction
* Incorrect initial installation adjustment
* Dust or debris affecting rollers and tracks
* Heavy door panels causing slight movement over time
Regular adjustment and maintenance help maintain smooth operation and extend the service life of the bifold door system.
1. The Door Scrapes the Bottom Track or Floor
If a door panel touches the threshold when opening or closing, it usually indicates that the panel has dropped slightly.
Possible causes:
* Roller height adjustment is incorrect
* Door weight has shifted the panel position
* Hardware needs fine adjustment
2. The Door Panels Are Not Aligned
Misalignment may appear as:
* Uneven gaps between panels
* Panels touching each other
* Door edges not forming a straight line when closed
This problem is often related to hinge positioning or roller adjustment.
3. The Lock Is Difficult to Engage
If you need to push, lift, or force the handle to lock the door, the issue may be:
* Door panel height is incorrect
* Locking points are not aligned
* Frame and sash position has changed
Avoid forcing the handle because this may damage the locking mechanism.
4. The Door Opens or Folds Unevenly
A properly adjusted aluminum bifold door should move smoothly with consistent resistance.
If one panel feels heavier or does not fold correctly, check:
* Rollers
* Hinges
* Track condition
* Panel alignment
* Allen keys (hex keys)
* Screwdriver
* Adjustable wrench
* Cleaning cloth
* Silicone-based lubricant
* Measuring tape
The exact adjustment method depends on the bifold door system and hardware manufacturer. Some systems use bottom roller adjustment, while others rely more on hinge adjustment.
1. Scraping at the Bottom Track or Floor
If a door panel touches the threshold when opening or closing, it may have dropped slightly.
Possible causes include:
Incorrect roller height
Door weight affecting panel position
Hardware requiring adjustment
2. Uneven Panel Alignment
Misalignment may appear as:
Uneven gaps between panels
Panels touching each other
Door edges not forming a straight line when closed
This is often related to hinge positioning or roller adjustment.
3. Difficulty Engaging the Lock
If you need to push, lift, or force the handle to lock the door, check for:
Incorrect door panel height
Misaligned locking points
Changes in frame or sash position
Avoid forcing the handle, as this may damage the locking mechanism.
4. Uneven Opening or Folding
A properly adjusted aluminum bifold door should move smoothly with consistent resistance.
If one panel feels heavier or does not fold correctly, check:
Rollers
Hinges
Track condition
Panel alignment
* Allen keys (hex keys)
* Screwdriver
* Adjustable wrench
* Cleaning cloth
* Silicone-based lubricant
* Measuring tape
The exact adjustment method depends on the bifold door system and hardware manufacturer. Some systems use bottom roller adjustment, while others rely more on hinge adjustment.
Step 1: Clean and Inspect the Door Track
Before adjusting any hardware, always check the basic condition of the door.
Clean the Tracks
Remove:
* Dust
* Sand
* Small stones
* Other debris
Dirt accumulation can increase friction and create symptoms similar to a misaligned door.
After cleaning:
1. Open and close the door several times.
2. Check where the door catches.
3. Identify whether the problem comes from height, alignment, or movement resistance.
Do not adjust hardware before confirming the actual cause.
Step 2: Adjust the Height of the Door Panel
If the aluminum bifold door has dropped and rubs against the threshold, height adjustment is usually the first solution.
Most aluminum bifold systems include adjustment points on the bottom roller or carrier.
How to Adjust:
1. Locate the adjustment screw on the bottom roller assembly.
2. Insert the correct Allen key.
3. Turn the adjustment screw slightly.
4. Test the door movement.
5. Repeat until the panel moves smoothly.
Make small adjustments each time. A small movement can significantly affect the alignment of multiple door panels.
Many bifold door systems use roller adjustment to raise or lower individual panels and restore proper clearance.
Step 3: Adjust the Hinges for Panel Alignment
If the door height is correct but panels are not aligned, the hinges may require adjustment.
Hinge adjustment can help correct:
* Uneven gaps
* Door panels touching
* Incorrect sealing pressure
* Misalignment between panels
Adjustment method:
1. Check each hinge connection.
2. Tighten any loose screws.
3. Adjust the hinge position gradually.
4. Close the door and check the gaps.
Avoid adjusting only one hinge aggressively. Aluminum bifold doors work as a complete system, and changes in one area can affect other panels.
Step 4: Check and Adjust the Locking Alignment
After adjusting rollers and hinges, test the locking system.
A properly adjusted bifold door should:
* Close without excessive force
* Allow locking points to engage smoothly
* Maintain even pressure on seals
If the lock still does not align:
* Check whether the door panel height is correct
* Inspect locking points and keeps
* Confirm that the frame remains square
Do not simply move the lock position to compensate for a door alignment problem.
Step 5: Lubricate Moving Components
After adjustment, apply a small amount of suitable lubricant to moving parts.
Recommended areas:
* Hinges
* Rollers
* Pivot points
* Locking mechanisms
Avoid applying excessive lubricant to tracks because it may attract dust and reduce performance.
Turning adjustment screws too much can create new problems.
Better approach:
* Adjust slightly
* Test operation
* Repeat if necessary
2. Adjusting the Wrong Component
A door rubbing at the bottom does not always mean the roller is the problem.
Possible causes include:
* Frame movement
* Incorrect glass positioning
* Hinge alignment issues
* Installation problems
3. Ignoring Installation Quality
Adjustment can solve normal movement issues, but it cannot fix major installation problems.
If the aluminum frame is not level or square, repeated adjustment may only provide a temporary solution. Proper installation tolerance and correct glazing support are essential for long-term performance.
* The door continues dropping after adjustment
* The frame appears twisted or uneven
* Glass panels are loose
* Hinges or rollers are damaged
* The door cannot lock securely
* Adjustment screws no longer work
Large aluminum bifold doors contain heavy glass panels and precision hardware. Incorrect adjustment may affect safety, sealing performance, and long-term durability.
Important factors include:
* Precision extrusion tolerances
* Strong hinge and roller systems
* Proper glass support
* Accurate machining and fabrication
* Professional installation guidance
As an experienced aluminum door and window manufacturer, Shenghai Aluminum provides complete aluminum door solutions, from aluminum profile extrusion and surface finishing to CNC machining, fabrication, assembly, and finished door system production. By controlling the manufacturing process from raw aluminum profiles to complete aluminum bifold doors, Shenghai Aluminum helps ensure consistent quality, accurate dimensions, and reliable long-term performance for residential and commercial projects.
For manufacturers, distributors, and project buyers, choosing a reliable aluminum door supplier not only reduces future adjustment and maintenance issues but also ensures stable product quality and supply capability.
Adjusting aluminum bifold doors is usually straightforward when the problem stems from minor hardware movement or normal wear. Cleaning the track, checking alignment, and making small adjustments to the roller or hinge can often restore smooth operation.
However, if the problem comes from incorrect installation, frame deformation, or damaged components, professional inspection is the better solution.
A well-designed aluminum bifold door system, combined with precise manufacturing, proper installation, and regular maintenance, can provide years of smooth and reliable performance.
In most cases, these issues do not necessitate replacing the entire door system. For a well-designed aluminum alloy folding door system, smooth operation can usually be restored and the system’s service life extended through proper adjustments to the rollers, hinges, and alignment components.
As an experienced aluminum door manufacturer, Shenghai Aluminum understands the importance of proper installation, hardware adjustment, and regular maintenance. This guide explains step-by-step how to adjust aluminum bifold doors, covering common adjustment issues, practical solutions, and situations where professional assistance may be needed.
Why Do Aluminum Bifold Doors Need Adjustment
Aluminum bifold doors are made up of multiple moving components, including:* Door panels
* Hinges
* Top and bottom rollers
* Pivot points
* Locking hardware
* Aluminum frames and tracks
Because large glass panels can be heavy, even a small movement in the hardware or building structure may affect door performance over time.
Common reasons why aluminum bifold doors need adjustment include:
* Natural settling of the building structure
* Loose or worn hardware
* Changes caused by temperature expansion and contraction
* Incorrect initial installation adjustment
* Dust or debris affecting rollers and tracks
* Heavy door panels causing slight movement over time
Regular adjustment and maintenance help maintain smooth operation and extend the service life of the bifold door system.
Common Signs Your Aluminum Bifold Door Needs Adjustment
Before making any changes, identify the exact problem first. Different issues require different adjustments.1. The Door Scrapes the Bottom Track or Floor
If a door panel touches the threshold when opening or closing, it usually indicates that the panel has dropped slightly.
Possible causes:
* Roller height adjustment is incorrect
* Door weight has shifted the panel position
* Hardware needs fine adjustment
2. The Door Panels Are Not Aligned
Misalignment may appear as:
* Uneven gaps between panels
* Panels touching each other
* Door edges not forming a straight line when closed
This problem is often related to hinge positioning or roller adjustment.
3. The Lock Is Difficult to Engage
If you need to push, lift, or force the handle to lock the door, the issue may be:
* Door panel height is incorrect
* Locking points are not aligned
* Frame and sash position has changed
Avoid forcing the handle because this may damage the locking mechanism.
4. The Door Opens or Folds Unevenly
A properly adjusted aluminum bifold door should move smoothly with consistent resistance.
If one panel feels heavier or does not fold correctly, check:
* Rollers
* Hinges
* Track condition
* Panel alignment
Tools Required for Aluminum Bifold Door Adjustment
Before starting, prepare:* Allen keys (hex keys)
* Screwdriver
* Adjustable wrench
* Cleaning cloth
* Silicone-based lubricant
* Measuring tape
The exact adjustment method depends on the bifold door system and hardware manufacturer. Some systems use bottom roller adjustment, while others rely more on hinge adjustment.
1. Scraping at the Bottom Track or Floor
If a door panel touches the threshold when opening or closing, it may have dropped slightly.
Possible causes include:
Incorrect roller height
Door weight affecting panel position
Hardware requiring adjustment
2. Uneven Panel Alignment
Misalignment may appear as:
Uneven gaps between panels
Panels touching each other
Door edges not forming a straight line when closed
This is often related to hinge positioning or roller adjustment.
3. Difficulty Engaging the Lock
If you need to push, lift, or force the handle to lock the door, check for:
Incorrect door panel height
Misaligned locking points
Changes in frame or sash position
Avoid forcing the handle, as this may damage the locking mechanism.
4. Uneven Opening or Folding
A properly adjusted aluminum bifold door should move smoothly with consistent resistance.
If one panel feels heavier or does not fold correctly, check:
Rollers
Hinges
Track condition
Panel alignment
Tools Required for Aluminum Bifold Door Adjustment
Before starting, prepare:* Allen keys (hex keys)
* Screwdriver
* Adjustable wrench
* Cleaning cloth
* Silicone-based lubricant
* Measuring tape
The exact adjustment method depends on the bifold door system and hardware manufacturer. Some systems use bottom roller adjustment, while others rely more on hinge adjustment.
Step 1: Clean and Inspect the Door Track
Before adjusting any hardware, always check the basic condition of the door.
Clean the Tracks
Remove:
* Dust
* Sand
* Small stones
* Other debris
Dirt accumulation can increase friction and create symptoms similar to a misaligned door.
After cleaning:
1. Open and close the door several times.
2. Check where the door catches.
3. Identify whether the problem comes from height, alignment, or movement resistance.
Do not adjust hardware before confirming the actual cause.
Step 2: Adjust the Height of the Door Panel
If the aluminum bifold door has dropped and rubs against the threshold, height adjustment is usually the first solution.
Most aluminum bifold systems include adjustment points on the bottom roller or carrier.
How to Adjust:
1. Locate the adjustment screw on the bottom roller assembly.
2. Insert the correct Allen key.
3. Turn the adjustment screw slightly.
4. Test the door movement.
5. Repeat until the panel moves smoothly.
Make small adjustments each time. A small movement can significantly affect the alignment of multiple door panels.
Many bifold door systems use roller adjustment to raise or lower individual panels and restore proper clearance.
Step 3: Adjust the Hinges for Panel Alignment
If the door height is correct but panels are not aligned, the hinges may require adjustment.
Hinge adjustment can help correct:
* Uneven gaps
* Door panels touching
* Incorrect sealing pressure
* Misalignment between panels
Adjustment method:
1. Check each hinge connection.
2. Tighten any loose screws.
3. Adjust the hinge position gradually.
4. Close the door and check the gaps.
Avoid adjusting only one hinge aggressively. Aluminum bifold doors work as a complete system, and changes in one area can affect other panels.
Step 4: Check and Adjust the Locking Alignment
After adjusting rollers and hinges, test the locking system.
A properly adjusted bifold door should:
* Close without excessive force
* Allow locking points to engage smoothly
* Maintain even pressure on seals
If the lock still does not align:
* Check whether the door panel height is correct
* Inspect locking points and keeps
* Confirm that the frame remains square
Do not simply move the lock position to compensate for a door alignment problem.
Step 5: Lubricate Moving Components
After adjustment, apply a small amount of suitable lubricant to moving parts.
Recommended areas:
* Hinges
* Rollers
* Pivot points
* Locking mechanisms
Avoid applying excessive lubricant to tracks because it may attract dust and reduce performance.
Common Mistakes When Adjusting Aluminum Bifold Doors
1. Making Large Adjustments at OnceTurning adjustment screws too much can create new problems.
Better approach:
* Adjust slightly
* Test operation
* Repeat if necessary
2. Adjusting the Wrong Component
A door rubbing at the bottom does not always mean the roller is the problem.
Possible causes include:
* Frame movement
* Incorrect glass positioning
* Hinge alignment issues
* Installation problems
3. Ignoring Installation Quality
Adjustment can solve normal movement issues, but it cannot fix major installation problems.
If the aluminum frame is not level or square, repeated adjustment may only provide a temporary solution. Proper installation tolerance and correct glazing support are essential for long-term performance.
When Should You Contact a Professional
Professional adjustment is recommended when:* The door continues dropping after adjustment
* The frame appears twisted or uneven
* Glass panels are loose
* Hinges or rollers are damaged
* The door cannot lock securely
* Adjustment screws no longer work
Large aluminum bifold doors contain heavy glass panels and precision hardware. Incorrect adjustment may affect safety, sealing performance, and long-term durability.
How Manufacturers Improve Aluminum Bifold Door Performance
A high-quality aluminum bifold door system depends on more than just the aluminum frame. The performance of the final product is influenced by extrusion precision, hardware quality, fabrication accuracy, and installation support.Important factors include:
* Precision extrusion tolerances
* Strong hinge and roller systems
* Proper glass support
* Accurate machining and fabrication
* Professional installation guidance

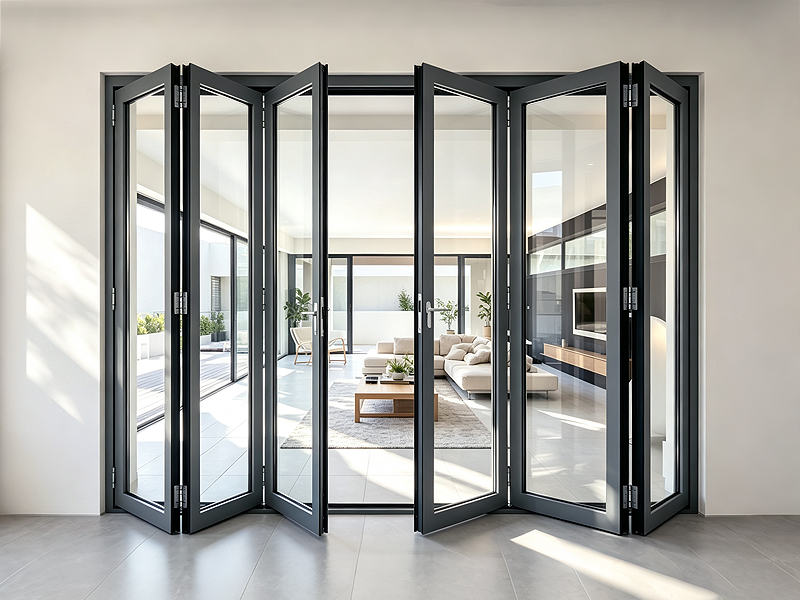

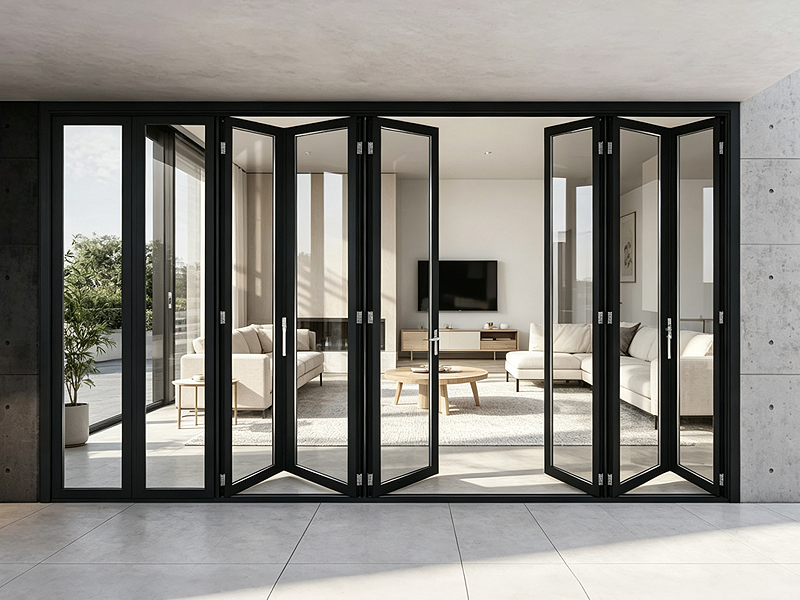

As an experienced aluminum door and window manufacturer, Shenghai Aluminum provides complete aluminum door solutions, from aluminum profile extrusion and surface finishing to CNC machining, fabrication, assembly, and finished door system production. By controlling the manufacturing process from raw aluminum profiles to complete aluminum bifold doors, Shenghai Aluminum helps ensure consistent quality, accurate dimensions, and reliable long-term performance for residential and commercial projects.
For manufacturers, distributors, and project buyers, choosing a reliable aluminum door supplier not only reduces future adjustment and maintenance issues but also ensures stable product quality and supply capability.
Adjusting aluminum bifold doors is usually straightforward when the problem stems from minor hardware movement or normal wear. Cleaning the track, checking alignment, and making small adjustments to the roller or hinge can often restore smooth operation.
However, if the problem comes from incorrect installation, frame deformation, or damaged components, professional inspection is the better solution.
A well-designed aluminum bifold door system, combined with precise manufacturing, proper installation, and regular maintenance, can provide years of smooth and reliable performance.
