Aluminum Heavy Duty Folding Door 120 Series

Shenghai Aluminum 120 Series Heavy Duty Aluminum Folding Door is designed for large openings in modern buildings. It combines a strong, durable aluminum profile structure with a smooth, flexible folding system, creating a seamless connection between indoor and outdoor spaces. Whether used in villas, courtyards, balconies, or commercial projects, it provides wider views, more natural light, and better use of space, adding a modern and premium look to any building.

Product Specifications
1.Load Capacity & Dimensions (Heavy Duty System)
* Single panel load capacity: 200–250kg (top-hung track + bottom support system)
* Max width per panel: 800–1000mm
* Max height per panel: up to 6000mm (6m available with 3.0mm thickness profile)
* Profile: 6063-T5 original aluminum, 3.0mm wall thickness; frame width 85.1mm / sash width 87mm
* Glass option: 6+27A+6 double glazing tempered glass (optional laminated glass / argon-filled glass)

2.Track & Roller System
* Track system: top and bottom dual tracks (high track / low track optional), fully concealed design
* Rollers: 304 stainless steel, 4 sets double-bearing rollers per panel; anti-sag, soft buffering, and low-noise operation
* Opening angle: 90° / 135° full opening for smooth and space-saving folding

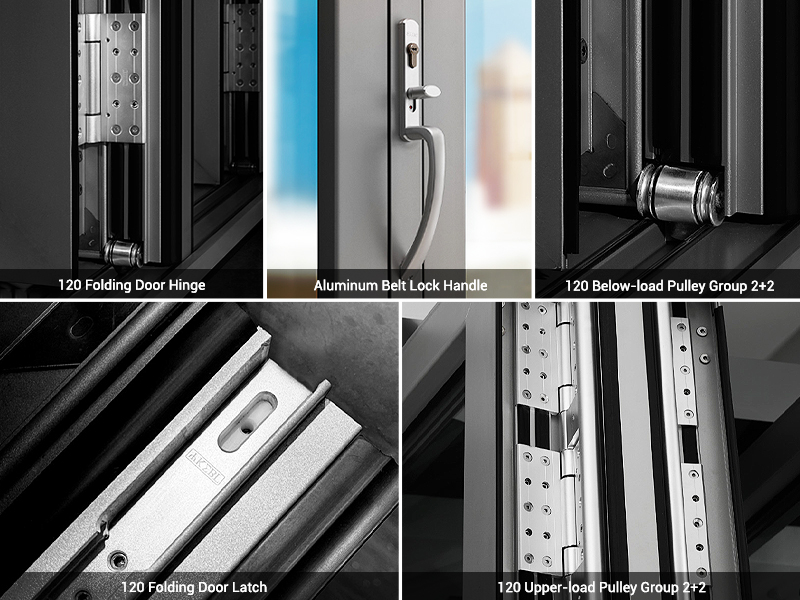

3.Hardware System
* Hinges: concealed heavy-duty hinges with anti-pinch design; reinforced for 3.0mm thick profiles
* Lock: silent latch system, optional key handle lock or pull handle
* Sealing: EPDM rubber gasket with multi-layer sealing for better air and water tightness

4.Performance & Safety
* Material: stainless steel + high-strength zinc alloy, rust-resistant and durable
* Safety design: anti-pinch, anti-fall, and anti-derailment protection
* Application: villas, hotels, and large commercial openings; wind resistance up to level 9

Product Advantages
Automatic Locking Door Panels
The door panels feature an automatic locking system that locks automatically when closed, without any extra operation. They can be easily opened with a simple press and push, offering greater convenience while improving safety and reducing potential risks.

Fully Concealed Profile Structure
The system adopts a fully concealed design. When the door is closed, all hardware components, including hinges and rollers, are hidden inside the profiles. This creates a cleaner appearance and gives the building a modern and elegant look.

Flexible Folding Configurations
A variety of folding configurations are available, including 220, 321, 330, 440, 422, 431, 550, 541, and 532. The door system can be customized according to different opening sizes and building layouts, making it suitable for a wide range of project requirements.

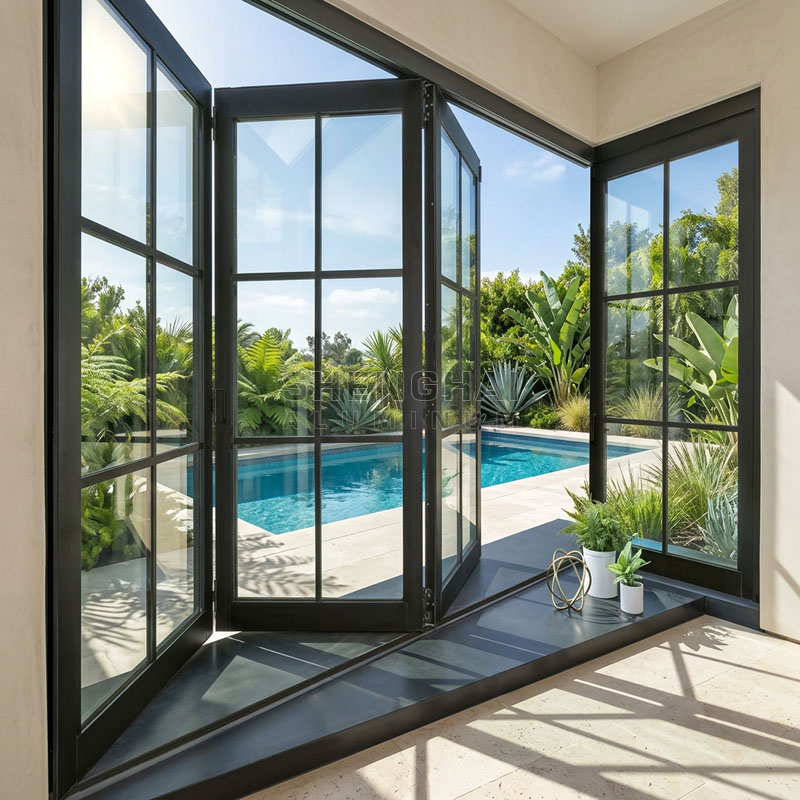

Column-Free 90° Corner Design
The innovative column-free 90° corner design allows the corner area to open completely, creating a wider view and a more open feeling. It also maximizes the available opening space and improves space utilization when the doors are folded away.

Product Application

Our Factory

PE film for each profile/ Shrink PE film for each bundle, Slot packing, Craft paper/ Foam Paper/Carton box

Material & Temper	Alloy 6063-T5,6061-T6 , We will never use aluminum scrap.
Surface Treament	Mill-Finished, Anodizing, Powder Coating, Electrophoresis, Wood Grain, Polishing, Brushing, etc.
Colour	Silver, Champage, Bronze, Golden, Black, Sand coating, Anodized Acid and alkali or Customized.
Film Standard	Anodized:7-23 μ , Powder coating: 60-120 μ , Electrophoresis film: 12-25 μ.
Lifetime	Anodized for 12-15 years outdoor, Powder coating for 18-20 years outdoor.
MOQ	500 kgs. Usually 10-12 tons for a 20'FT; 20-23 tons for a 40HQ.
Length	5.8M or Customized.
Thickness	0.4mm-20mm or Customized.
Application	Building and Construction and Decoration.
Extrusion Machine	600-3600 tons all together 6 extrusion lines.
Capability	Output 1200 tons per month.
Profile type	1. Sliding window and door profiles; 2. Casement window and door profiles; 3. Aluminum profiles for LED light; 4. Tile Trim Aluminum profiles; 5. Curtain wall profile; 6. Aluminum heating insulation profiles; 7. Round/Square General profiles; 8. Aluminum heat sink; 9. Others Industry profiles.
New Moulds	Opening new mould about 7-10 days, absolutely moulds cost can be refund.
Free Samples	Can be available all the time, about 1 days can be sent.
Fabrication	Die designing→ Die making→ Smelting & alloying→ QC→ Extruding→ Cutting→ Heat Treatment→ QC→ Surface treatment→ QC→ Packing→ QC→ Shipping→ After Sale Service
Deep Processing	CNC / Cutting / Punching / Checking / Tapping / Drilling / Milling
Certification	1. ISO9001-2008/ISO 9001:2008; 2. GB/T28001-2001(including all the standard of OHSAS18001:1999); 3. GB/T24001-2004/ISO 14001:2004; 4. GMC.
Payment	1. T/T: 30% deposite, the balance will be paid before delivery; 2. L/C: the balance irrevocable L/C at sight.
Delivery time	1. 15 days production ; 2. If opening mould, plus 7-10 days.
OEM	Available.

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity		Al
									Unit	Total
6063	0.2-0.6	<0.35	<0.1	<0.1	0.45-0.9	<0.1	<0.1	<0.1	<0.05	<0.15	Surplus
6061	0.4-0.8	0.7	0.15-0.4	<0.15	0.8-1.2	0.04-0.35	<0.25	<0.15	<0.05	<0.15	Surplus
6005	0.6-0.9	<0.35	<0.1	<0.1	0.4-0.9	0.1	<0.1	<0.1	<0.05	<0.15	Surplus
6060	0.3-0.6	0.35-0.6	0.1-0.3	<0.1	<0.1	<0.15	<0.05	<0.1	<0.05	<0.15	Surplus
