Aluminum U Channel Glass Railing Profile For Balcony

Product Description
The main difference between aluminum alloy railings and railings made of other materials is that they are often assembled and spliced together without welding, polishing and other processes like stainless steel. Although aluminum alloys can also be welded, most are still combined aluminum handrails.

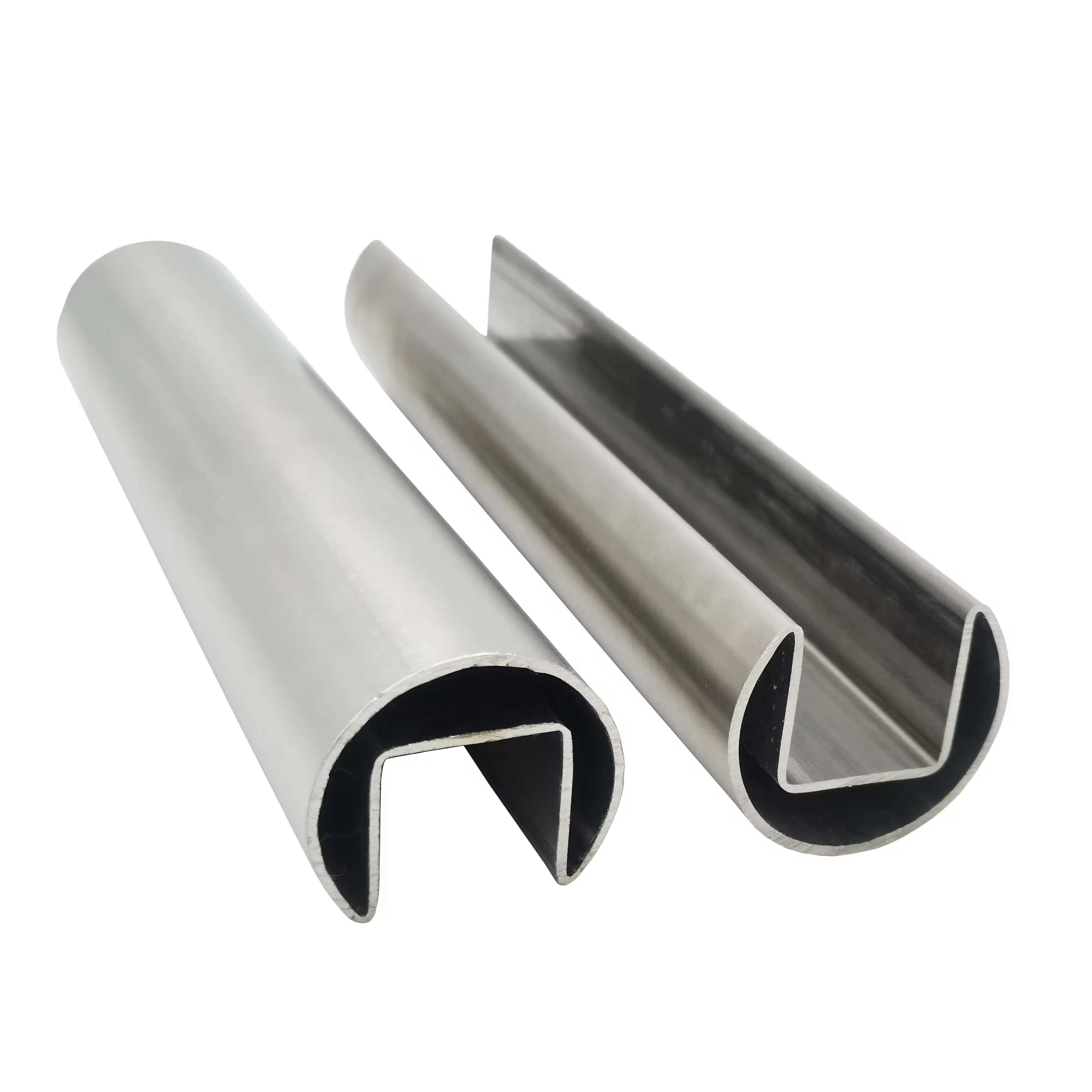

Our U channel aluminum railing profile is extruded from 6063 aluminum alloy, and the surface treatment includes anodizing, powder coating, etc. Corrosion-resistant, it will not be damaged in harsh environments. The beautiful appearance is very consistent with the modern minimalist style, so it is also very popular among customers all over the world. At the same time, you don’t have to worry about accessories; Shenghai Aluminium can provide you with all of them. We are aluminum extrusion manufacturer that provides high-quality aluminum profiles for railings and can help you solve all railings-related problems. Any size, color, or shape can help you provide a solution; welcome to contact us for your aluminum railing project.
Features:
Height (floor to handrail top): 42″(1067mm) or customized size
Thickness of glass: 12mm to 21.52mm tempered or laminated glass
Top handrail types: Square or round slotted tube aluminum handrail
Material & Finish: High grade Aluminum 6063 T5, natural/ anodized/ powder coating surface

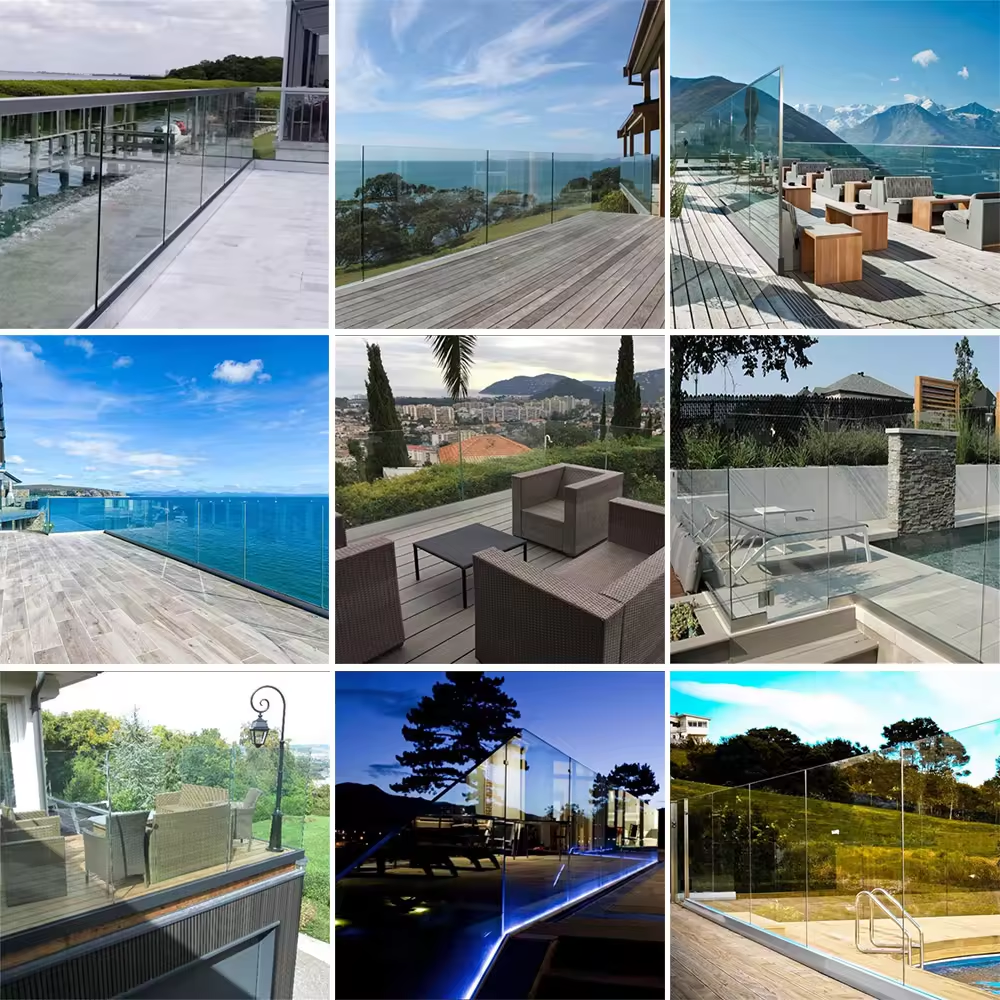

Application: Railing and balustrade for shopping mall, pool fence, villa balcony, modern stair, airport and subway station etc.


PE film for each profile/ Shrink PE film for each bundle, Slot packing, Craft paper/ Foam Paper/Carton box

Material & Temper	Alloy 6063-T5,6061-T6 , We will never use aluminum scrap.
Surface Treament	Mill-Finished, Anodizing, Powder Coating, Electrophoresis, Wood Grain, Polishing, Brushing, etc.
Colour	Silver, Champage, Bronze, Golden, Black, Sand coating, Anodized Acid and alkali or Customized.
Film Standard	Anodized:7-23 μ , Powder coating: 60-120 μ , Electrophoresis film: 12-25 μ.
Lifetime	Anodized for 12-15 years outdoor, Powder coating for 18-20 years outdoor.
MOQ	500 kgs. Usually 10-12 tons for a 20'FT; 20-23 tons for a 40HQ.
Length	5.8M or Customized.
Thickness	0.4mm-20mm or Customized.
Application	Building and Construction and Decoration.
Extrusion Machine	600-3600 tons all together 6 extrusion lines.
Capability	Output 1200 tons per month.
Profile type	1. Sliding window and door profiles; 2. Casement window and door profiles; 3. Aluminum profiles for LED light; 4. Tile Trim Aluminum profiles; 5. Curtain wall profile; 6. Aluminum heating insulation profiles; 7. Round/Square General profiles; 8. Aluminum heat sink; 9. Others Industry profiles.
New Moulds	Opening new mould about 7-10 days, absolutely moulds cost can be refund.
Free Samples	Can be available all the time, about 1 days can be sent.
Fabrication	Die designing→ Die making→ Smelting & alloying→ QC→ Extruding→ Cutting→ Heat Treatment→ QC→ Surface treatment→ QC→ Packing→ QC→ Shipping→ After Sale Service
Deep Processing	CNC / Cutting / Punching / Checking / Tapping / Drilling / Milling
Certification	1. ISO9001-2008/ISO 9001:2008; 2. GB/T28001-2001(including all the standard of OHSAS18001:1999); 3. GB/T24001-2004/ISO 14001:2004; 4. GMC.
Payment	1. T/T: 30% deposite, the balance will be paid before delivery; 2. L/C: the balance irrevocable L/C at sight.
Delivery time	1. 15 days production ; 2. If opening mould, plus 7-10 days.
OEM	Available.

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Impurity		Al
									Unit	Total
6063	0.2-0.6	<0.35	<0.1	<0.1	0.45-0.9	<0.1	<0.1	<0.1	<0.05	<0.15	Surplus
6061	0.4-0.8	0.7	0.15-0.4	<0.15	0.8-1.2	0.04-0.35	<0.25	<0.15	<0.05	<0.15	Surplus
6005	0.6-0.9	<0.35	<0.1	<0.1	0.4-0.9	0.1	<0.1	<0.1	<0.05	<0.15	Surplus
6060	0.3-0.6	0.35-0.6	0.1-0.3	<0.1	<0.1	<0.15	<0.05	<0.1	<0.05	<0.15	Surplus
